RTF&HVLP精密铜箔领先品牌
BR-LLX/BR-2LX/BR-3LX/BR-5LX
Double shiny side copper foil for HF application
Product Characteristic
Hyper very low profile copper foil with excellent signal integrity (SI).
Suitable for low Dk/Df prepreg as board material with good bonding strength.
| Product | Roughness,Rz (prepreg side) |
Thickness (μm) |
Application | Status |
| BR-LLX (VLP) |
≤3.0 μm | 12/18/35 | Sensor Chip |
Mass production |
| BR-2LX (HVLP1) |
≤2.0 μm | Computer | ||
| BR-3LX (HVLP2) |
≤1.5 μm | AI PC/ Server |
||
| BR-5LX (HVLP4) |
≤0.8 μm | 18/35 | AI Server | Under development |

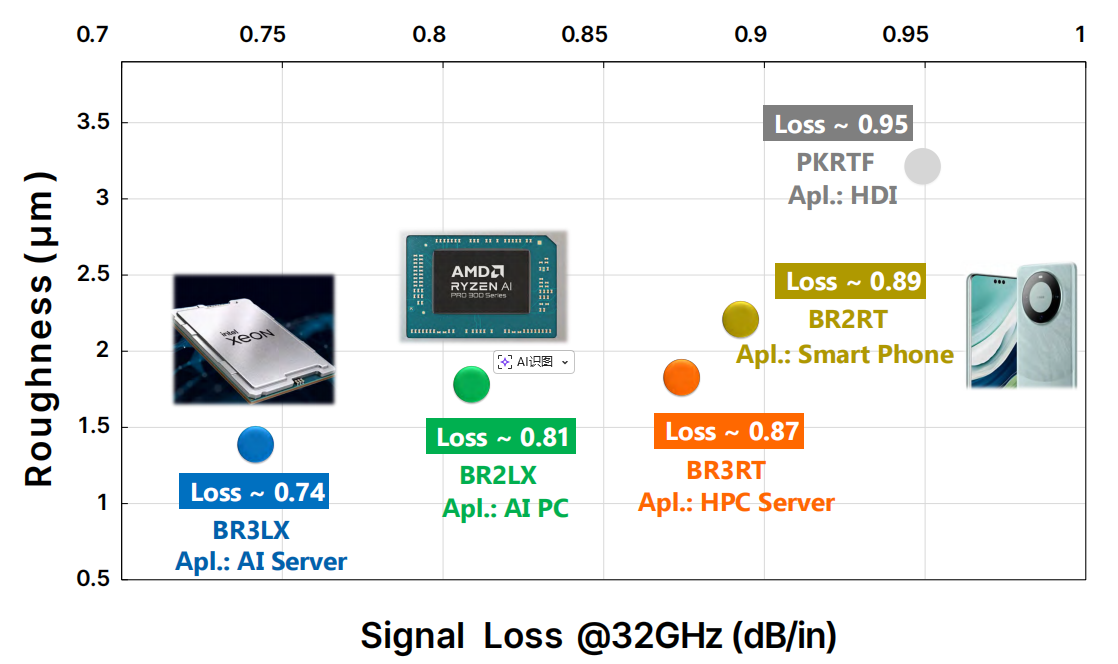

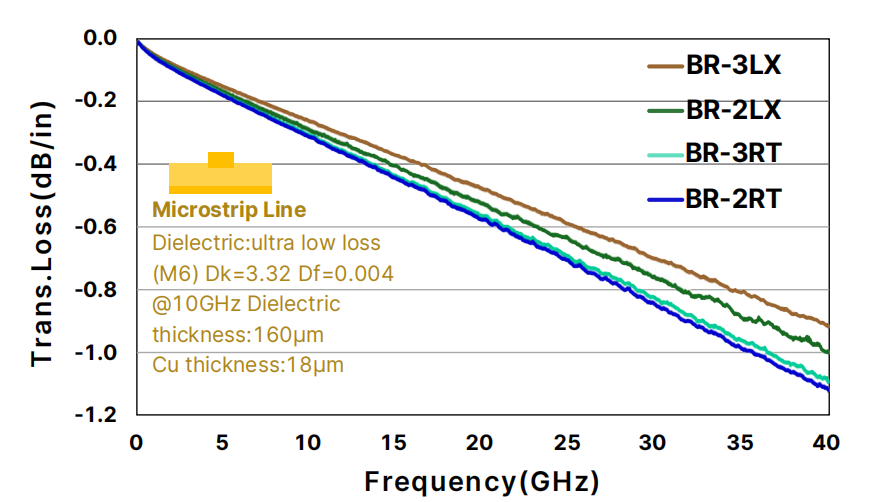

Transmission Loss
VLP series has better signal integrity (SI) than RT series.

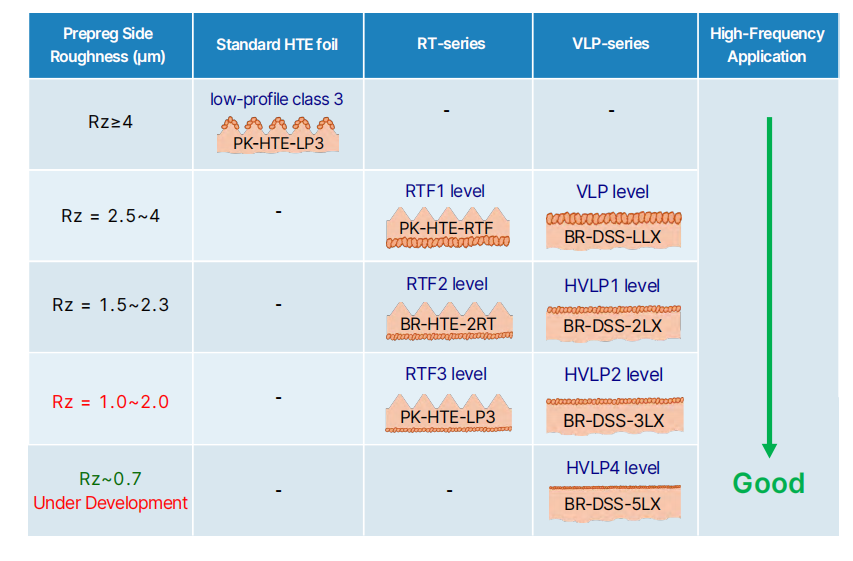

High Performance Copper Foil
High Frequency Solution
According to different end user, LCYT provides suitable solution to the customers.
